Image for illustration purpose only.

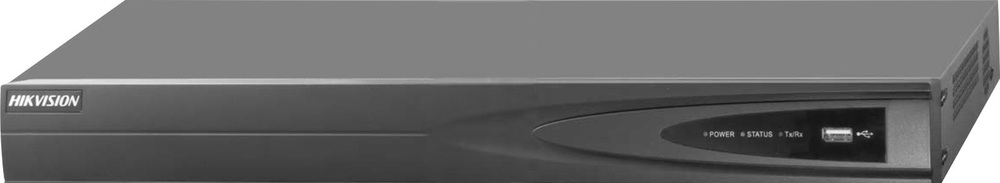

Hikvision NVR 32ch 8PoE

Project Level ONVIF Recorder 200mbps 32X 1080P DVR CCTV

Stock Availability (Osborne Park/Online Orders): Out of stock, please enquire.
Product Code: RMNA-HIPR32
Note: International Model
Price $740.00    add to cart

Additional Product Information

The information below is provided for browsing purposes only. Product Models and revisions change frequently and discrepancies may occur.

Key Features
• Third-party network cameras supported,support ONVIF. PSIA. RTSP protocol

• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 8/32 independent PoE network interfaces

• Support smart IPC smart  functions

Project  level  Network video recorder





32CH

Video/Audio Input

IP Video Input:

Network access bandwidth video

32-ch

200Mbps

One-way Audio output: 1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
VGA Output: 1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
HDMI Output: 1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720
/60Hz, 1024 × 768 /60Hz

Recording resolution:



Video / Capture mode

6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF



manual recording ,timer recording ,motion detection recording,alarm recording,dynamic test or alarm recording,alarm recording and dynamic testing

Audio Output: 1-ch RCA(Linear, 1kΩ)
Playback Resolution: 6MP/ 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF
Synchronous Playback: 16-ch
Hard Disk Driver
Interface Type: 2 SATA Interfaces
Capacity: Up to 4TB capacity for each disk

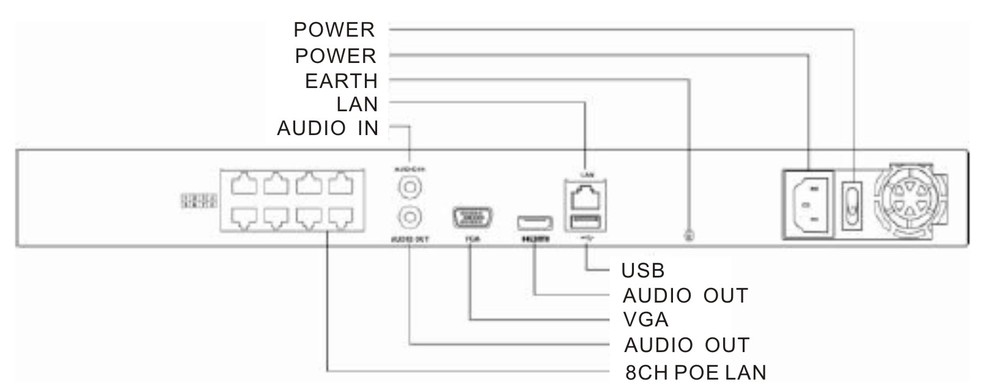

External Interface
Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface,
8 independent 10/100 Mbps PoE Ethernet interfaces
USB Interface: 1 USB 2.0 Interfaces,1 USB 3.0 Interfaces
One-way Audio output: 1-ch RCA(2.0Vp-p, 1kΩ)
General
Power Supply: 100~240VAC
Consumption: ≤ 10 W (without hard disk)
Working Temperature: -10 °C ~ +55 °C
Working Humidity: 10%~90%
Chassis:  19-inch rack-mounted 1U chassis
Dimensions: 445× 290× 45mm (W x D x H)
Weight: ≤ 1 Kg (without hard disk)
