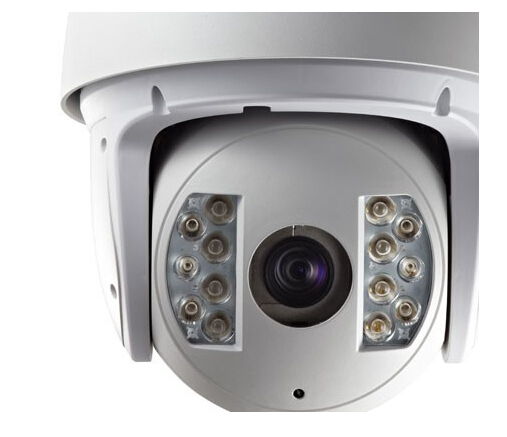

Image for illustration purpose only.

Hikvision DS-2DF7284-A H.264

2mp 960P Onvif IP PTZ 20X Zoom CCTV Camera 120m IR

Stock Availability (Osborne Park/Online Orders): Out of stock, please enquire.
Product Code: CMIP-HI7284-04
Note: International Model
Price $2,190.00    add to cart

Additional Product Information

The information below is provided for browsing purposes only. Product Models and revisions change frequently and discrepancies may occur.

Hikvision DS-2DF7284-A H.264

Features:

• 1/3’’ Progressive Scan CMOS, up to 1920x1080
• True day / night
• Up to 120m IR range
• 3D intelligent positioning function
• IP66 rating
• 3D DNR





Camera

Image Sensor:

1/3’’ Progressive Scan CMOS

Effective Pixels:

1920(H)x1080(V)

Signal System:

PAL/NTSC

Minimum Illumination:

Color: 0.05Lux F1.6
B/W: 0.005Lux F1.6
0 Lux with IR

White Balance:

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

Auto/Manual

S/N Ratio:

≥ 50dB

BLC:

ON/OFF

Shutter Time:

50Hz: 1/25-1/10,000s
60Hz: 1/25-1/10,000s

Day& Night:

ICR

Digital Zoom:

16X

Privacy Masking:

Up to 24 zones, and support up to 8 zones masked simultaneously in 1 image

Auto Focus:

Auto / Semi-automatic / Manual



Lens

Focal Length:

4.7-94mm, 20x

Zoom Speed:

Approx.2.7s(Optical Wide-Tele)

Angle of View:

58.3-3.2 degree (Wide-Tele)

Minimum Working Distance:

10-1500mm(Wide-Tele)

Aperture Range:

F1.6-F3.5



Pan & Tilt

Pan Range:

360°endless

Pan Speed:

Pan Manual Speed: 0.1°-160°/s,
Pan Preset Speed: 160°/s

Tilt Range:

-2°-90° (Auto Flip )

Tilt Speed:

Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 120°/s

Proportional Zoom:

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

256

Patrol:

8 patrols, up to 32 presets per patrol

Pattern:

4 patterns, with the recording time not less than 10 minutes per pattern

Power loss recovery:

Support

Park Action:

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display:

ON/OFF

Freeze Frame:

Support



Infrared

IR irradiation distance:

120m

IR irradiation angle:

Adjustable by zoom



Alarm

Alarm Input:

7 Inputs

Alarm Output:

2 channel relay output, with configurable alarm actions

Alarm Actions:

Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client

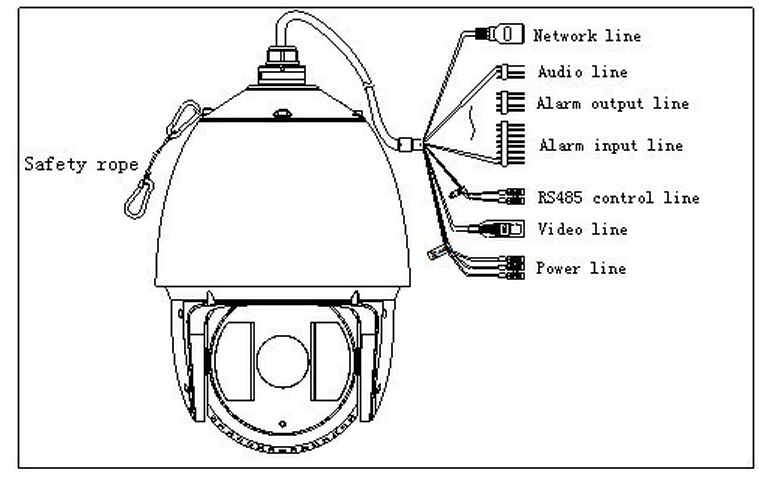

Input & Output

Monitor Output:

1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC

Audio Input:

Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%

Audio Output:

Line level, impendance: 600Ω



Network

Ethernet:

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:

1920×1080

Frame Rate:

50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720)

Image Compression:

H.264/MJPEG/MPEG4

Audio Compression:

G.711ulaw/G.711alaw/G.726

Protocols:

IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

No. of Simultaneous Users:

Up to 10 users

Dual Stream:

Support

Mini SD Card:

Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB

User/Host Level:

Up to 16 users,3 Levels: Administrator, Camera control, Live view only

Security Measures:

User authentication (ID and PW), host authentication (MAC address)



Client GUI

Camera Control:

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode

Camera Name:

Up to 32 characters

Reading Patrol Message:

Display and reading of preset message contained in each patrol via client software



Fiber Optical Interface (Available for Fiber dome)

Data Mode:

10Base-T / 100Base-TX

Physical Interface:

FC

Fiber Wavelength:

TX1310/RX1550nm

Fiber Type:

Single Fiber/Single mode

Transmission Distance:

20km



General

Menu Language:

English

RS-485 Protocols:

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Power Supply:

24 VAC(only available for -A model), 12 VDC(only available for -D model)

Power Consumption:

Max. 50W(IR LED On), Max.35W(IR LED Off)

Working Temperature/Humidity:

-30°C-65°C(-22°F-149°F)(outdoor)
90% or less

Protection Level:

IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting:

Various mounting modes optional

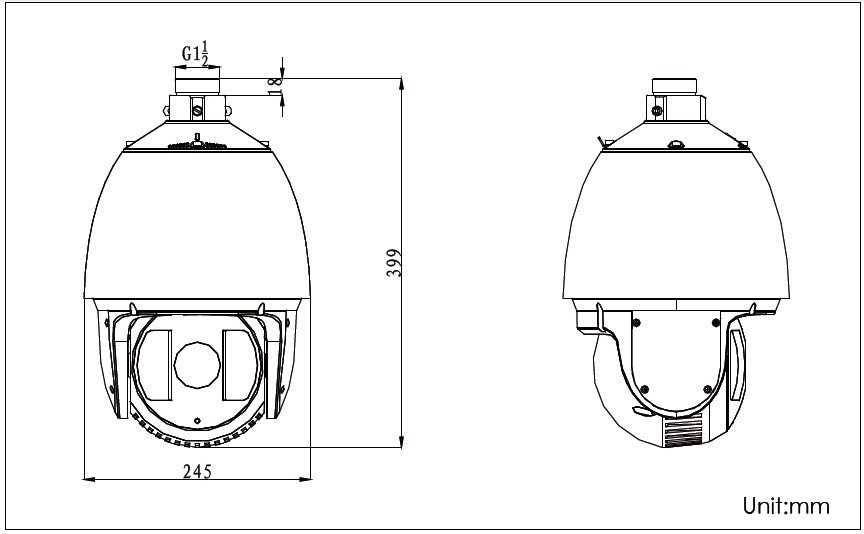

Dimensions:

Φ245×399mm (Φ9.65”×15.71”)(Outdoor)

Weight (approx.):

5.5kg(12.13lbs)

Mount Option:

Long-arm wall mount: DS-1614ZJ; Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ
