Mainboards > Intel Socket LGA1155 Motherboards

Image for illustration purpose only.

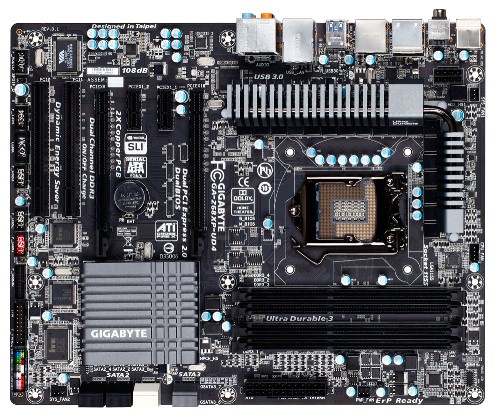

Gigabyte GA-Z68XP-UD4B3 Z68 MB

LGA1155 4DDR3 USB3.0 SLI GLAN Intel Z68 B3 Stepping

Stock Availability for Osborne Park and Online Orders: No stock available, more on the way.
Stock Availability for Myaree: No stock available, Call for ETA.
Product Code: MBGIGAZ68XP-UD4B
Manufacturers Website: www.gigabyte.com.au
Note: New Intel Z68 Chipset!
Price $199.00    add to cart

Additional Product Information

The information below is provided for browsing purposes only. Product Models and revisions change frequently and discrepancies may occur.

Gigabyte GA-Z68XP-UD4

GIGABYTE Z68 series motherboards provide all the advanced overclocking features users have come to know and love about the GIGABYTE P67 series motherboards including increasing processor core ratios, increasing DDR3 memory ratios and increasing power and current limits. In addition, GIGABYTE Z68 motherboards also allow users to increase the graphics core clock speed, for even greater graphics performance.

Specifications

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z68 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated in the Chipset:
  1. 1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio
  1. Realtek ALC889 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby® Home Theater
  5. Support for S/PDIF Out
LAN
  1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 2 x PCI Express x1 slots
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  4. 2 x PCI slots
Multi-Graphics Technology
  1. Support for AMD CrossFireX™/NVIDIA SLI technology
    * The PCIEX16 slot operates at up to x8 mode when AMD CrossFireX™/NVIDIA SLI is enabled.
Storage Interface Chipset:
  1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
2 x Marvell 88SE9172 chips:
  1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
  2. 2 x eSATA 6Gb/s connectors (including 1 eSATA/USB Combo connector) on the back panel supporting up to 2 SATA 6Gb/s devices
  3. Support for RAID 0 and RAID 1
USB Chipset:
  1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, including 1 eSATA/USB Combo connector, 6 ports available through the internal USB headers)
2 x Etron EJ168 chips:
  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
IEEE 1394 VIA VT6308 chip:
  1. Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 2 x system fan headers
  7. 1 x power fan header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x S/PDIF Out header
  11. 3 x USB 2.0/1.1 headers
  12. 1 x USB 3.0/2.0 header
  13. 1 x serial port header
  14. 1 x IEEE 1394a header
  15. 1 x Trusted Platform Module (TPM) header
  16. 1 x clearing CMOS jumper

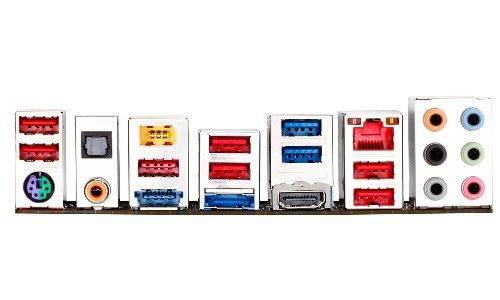

Back Panel Connectors
  1. 7 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 1 x IEEE 1394 port
  6. 1 x eSATA/USB Combo connector
  7. 1 x eSATA 6Gb/s connector
  8. 2 x USB 3.0/2.0 ports
  9. 1 x HDMI port
  10. 1 x RJ-45 port
  11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8728 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  8. Support for Dynamic Energy Saver™ 2
  9. Support for Smart 6™
  10. Support for Auto Green
  11. Support for eXtreme Hard Drive (X.H.D)
  12. Support for ON/OFF Charge
  13. Support for Cloud OC
  14. Support for 3TB+ Unlock
  15. Support for TouchBIOS
  16. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. LucidLogix Virtu
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
Operating System
  1. Support for Microsoft® Windows® 7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
